What Is Modbus?
Modbus is an open, royalty-free, client/server (formerly master/slave) communication protocol created by Modicon (now Schneider Electric) in 1979 for their programmable logic controllers (PLCs).
Today, what is Modbus? It’s the most widely used industrial communications protocol, native to both serial (RTU/ASCII) and Ethernet (TCP/IP) networks, enabling sensors, controllers, and computers to exchange data seamlessly.
Why Is Modbus So Popular?
Free & Open
No royalties or licenses required.
Simplicity
Easy to deploy, with straightforward frame structures and minimal overhead.
Flexibility
Works over RS‑232, RS‑485, Ethernet, and even wireless (GPRS, SMS).
Versatility
Supported by countless industrial devices—PLCs, sensors, HMIs, meters, and more.
How Does Modbus Work?
The Client-Server Model

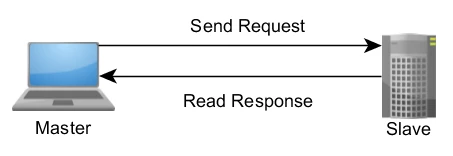

In Modbus, one device (the client, formerly “master”) initiates requests; connected devices (servers/slaves) reply. Ideal for SCADA, HMI, gateways, and sensors.
Data Units Explained
PDU (Protocol Data Unit)
Contains the function code and data.
ADU (Application Data Unit)
Adds server address + error-checking (CRC/LRC) over serial or a TCP header over Ethernet.
Serial Variants: RTU vs ASCII
Modbus RTU
Binary format with CRC‑16, compact, accurate timing, and up to 247 devices on RS‑485.
Modbus ASCII
Uses ASCII hex, simpler framing (‘:’ start), with LRC checksum.
Ethernet Variant: Modbus TCP/IP
- Runs over TCP port 502.
- Removes checksum since TCP/IP handles reliability.
- Includes 7‐byte MBAP header for addressing and transaction tracking.
What Data Types Does Modbus Handle?
Modbus defines four main data tables in the server’s memory:
| Table | Type | Access | Size | Description |
|---|---|---|---|---|
| Coils | Single bit | R/W | 0–65,535 | Digital output (on/off) |
| Discrete Inputs | Single bit | Read-only | 0–65,535 | Digital input (read-only boolean) |
| Input Registers | 16-bit word | Read-only | 0–65,535 | Analog inputs or measurement parameters |
| Holding Registers | 16-bit word | R/W | 0–65,535 | Configuration and control variables |
Common functions include Read Coil (01), Read Input Register (04), Write Single Holding Register (06), etc.
Modbus Transaction Workflow
- Client sends a request PDU (function code + parameters).
- Server executes, then replies with PDU (or exception code if error).
- Client receives and processes the response.
Error handling:
- No reply = timeout.
- Exception reply (function code ≥ 0x80) returns exception code for issues like illegal function or invalid address
Advanced & Extended Variants
- Modbus Plus: Peer-to-peer link, proprietary to Schneider (token-passing).
- Enron Modbus: Extended for floating-point and historical data.
- Pemex Modbus: For oil & gas flow and history support.
- Modbus Secure: Adds TLS encryption without modifying frames.
Pros, Cons & Future of Modbus
Advantages
- Easy to implement, widespread, low-cost.
- Extensive device compatibility, ideal for basic industrial instrumentation
Limitations
- Limited data types (no complex types), polling only (no push events).
- Max 247 devices per serial bus; lacks built-in security/authentication.
Future Outlook
Despite newer IIoT and secure industrial protocols, Modbus remains dominant due to simplicity and entrenched device support. Secure variants aim to extend its life in critical infrastructure .
Best Practices for Modbus Deployment
Successfully implementing Modbus—whether RTU, ASCII, or TCP/IP—requires thoughtful planning to ensure reliable, scalable, and secure communication.
Choose the Right Modbus Format
Modbus RTU is best suited for:
- Short to medium-range communication over serial lines (RS‑232 or RS‑485).
- Low-cost installations in industrial settings where Ethernet isn’t required.
- Applications with predictable polling, like sensor data acquisition, HVAC, or motor control.
Modbus TCP/IP is ideal for:
- Modern automation systems using Ethernet infrastructure.
- Faster communication speeds (up to 100 Mbps+ vs 19.2 kbps typical for serial).
- Integration with SCADA, cloud, and IIoT platforms, where routing and remote access are critical.
⚠️ Avoid mixing RTU and TCP without using a proper Modbus gateway or protocol converter.
Plan Device Addressing Carefully
For Modbus RTU/ASCII (Serial):
- Assign a unique address between 1 and 247 to each device on the RS‑485 bus.
- Address 0 is reserved for broadcast messages (note: not all devices support broadcast).
For Modbus TCP/IP:
- Devices are typically identified by IP address.
- The Unit Identifier (Unit ID) is used when Modbus TCP is routed to a serial network through a gateway.
✅ Tip: Document all device addresses in a centralized configuration sheet for maintenance and troubleshooting.
Frame Timing and Intervals
In Modbus RTU, timing is critical due to the lack of explicit start/stop markers:
- A minimum 3.5 character time of silence is required between frames (known as t3.5).
- A 1.5 character time is required between bytes within a frame to prevent parsing errors.
- Failure to maintain proper spacing can result in frame collisions or invalid CRCs.
📌 Use devices or software that allow configuration of frame delay and inter-character timeout settings for RTU networks.
Validate Checksum for Data Integrity
Each Modbus variant uses different error-checking mechanisms:
Modbus RTU
Uses CRC-16, a robust cyclic redundancy check that detects most transmission errors.
Modbus ASCII
Employs LRC (Longitudinal Redundancy Check)—simpler but slightly less reliable than CRC.
Modbus TCP/IP
Relies on TCP’s built-in error-checking mechanisms (checksums at the IP and transport layers), so no Modbus-level CRC/LRC is used.
🛠️ Always enable CRC/LRC validation in your PLC, SCADA, or Modbus gateway settings when using serial.
Harden Security in Modbus Networks
One of the biggest criticisms of Modbus—especially Modbus TCP—is its lack of security:
- No authentication, no encryption, and commands are sent in plain text.
- Devices can be easily discovered and manipulated if exposed to unsecured networks.
🔐 Best security practices for Modbus include:
- Network isolation: Place devices on a dedicated VLAN or isolated control network, segmented from corporate or internet-facing traffic.
- Firewalls and access control: Only allow known IP addresses and ports (typically TCP port 502).
- VPN tunnels: Secure remote access by requiring encrypted VPN connections.
- Modbus Secure / Modbus over TLS: Use updated versions of Modbus that support TLS 1.2 encryption and authentication without changing the core protocol behavior.
- Use anomaly detection or intrusion prevention systems (IPS) in large SCADA/ICS environments.
📉 Neglecting security can lead to critical control system breaches, data tampering, or operational downtime.
Implement Diagnostics and Monitoring
To maintain a healthy Modbus network:
- Enable event logging and communication diagnostics in PLCs and HMIs.
- Use Modbus test tools (like ModScan, QModMaster, or Wireshark with filters) to troubleshoot errors.
- Monitor for:
- High error counts
- Timeout rates
- Unexpected function codes
- CRC mismatches
🎯 Regular diagnostics improve uptime and reduce debugging time in industrial automation systems.
Use Gateways and Protocol Converters Wisely
When integrating legacy systems or combining multiple network types:
- Serial-to-Ethernet gateways (e.g., Modbus RTU ↔ TCP/IP) allow older equipment to communicate with modern systems.
- Choose gateways that support protocol mapping, buffering, and redundancy for critical applications.
Summary Table
| Best Practice | RTU/ASCII | TCP/IP |
|---|---|---|
| Format Use | Serial, simple, cost-effective | Ethernet, high speed, scalable |
| Addressing | Device ID 1–247 | IP + Unit ID |
| Timing | Inter-frame silence required | Not critical |
| Error Checking | CRC-16 or LRC | None (uses TCP checksums) |
| Security | Physical isolation + VPNs | TLS, firewalls, segmentation |
| Troubleshooting Tools | ModScan, serial monitors | Wireshark, TCP analyzers |
FAQ: What is Modbus?
What is Modbus used for?
To transmit sensor and actuation data (e.g., temperature, pressure, motor control) between PLCs, RTUs, SCADA/HMI systems, meters, etc.
What is Modbus RTU vs. TCP?
Modbus RTU runs over serial cables (RS-485) in binary, while Modbus TCP runs over Ethernet with TCP/IP.
Is Modbus secure?
By default, no. It sends plain text, has no authentication, and is vulnerable. Secure variants use TLS, and eBPF solutions can add protections.
How many devices can I connect?
Up to 247 serial devices per bus; Ethernet networks have no inherent device limit.
Conclusion: What is Modbus?
Modbus is a foundational industrial communications protocol—simple, open, and adaptable—powering legacy and modern systems alike.
From RS‑485 to Ethernet, its client/server model enables reliable data exchange for control and monitoring.
While it lacks advanced cybersecurity features, its enduring prevalence ensures it will remain a key industrial tool—especially with secure extensions and best-practice deployments.
