A sensor is a device that detects and measures a physical input from its environment. It then converts this input into a signal that can be read and processed by an electronic system.
This input can be light, heat, motion, pressure, or many other physical phenomena. In essence, sensors act as the “eyes and ears” of smart devices and industrial automation systems. They also play a key role in countless everyday products.
These devices use sensors to interact with the world and make intelligent decisions. From the automatic doors at a supermarket to the precision instruments in a spacecraft, sensors are everywhere.
They are an integral part of our increasingly connected world. This article provides an in-depth look at ten types of sensors. These are the fundamental components driving modern technology.
Temperature sensor
A temperature sensor measures heat or cold. It converts temperature changes into an electrical signal. Temperature sensors fall into two main groups: contact and non-contact.
Contact types, such as thermocouples, thermistors and RTDs need to touch the object or medium they measure. For instance, thermocouple uses two dissimilar metals joined at one end.
When this junction is heated or cooled, it produces a voltage. The voltage is proportional to the temperature difference. Another type, a thermistor, changes its electrical resistance with temperature.
Resistive Temperature Detectors (RTDs) are very accurate and use materials like platinum. Applications range from thermostats in homes to industrial process control.
Another type non-contact, such as Infrared sensors. These infrared sensors or pyrometric sensors measure temperature without touching the object. They sense the infrared radiation emitted by a surface.
Their application including consumer electronics (like remote controls), security systems (motion detection and alarms), industrial automation (quality control, temperature sensing), and medical devices (non-invasive imaging).

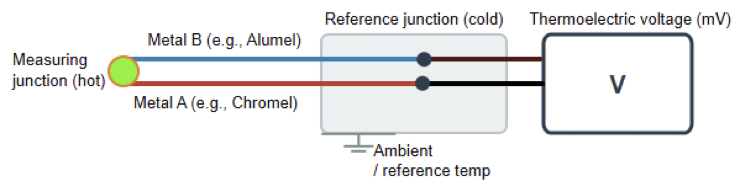

The next figure illustrates a simple diagram of a thermocouple showing the two metal wires joined at the hot junction and connected to a voltmeter at the cold junction.
Proximity sensor

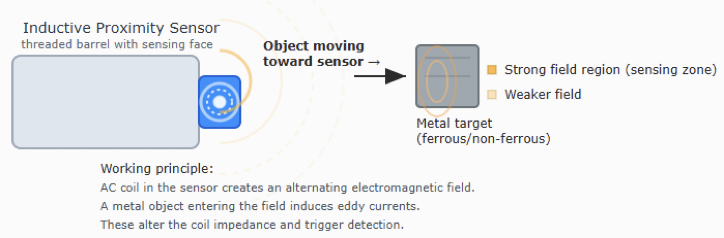

A proximity sensor detects the presence or absence of an object. It does this without any physical contact. This is useful for delicate or unstable objects. An inductive proximity sensor creates an electromagnetic field.
When a metallic object enters this field, eddy currents are induced. This causes a change in the sensor’s coil impedance, triggering the sensor. A capacitive proximity sensor generates an electrostatic field. It detects changes in this field’s capacitance.
This allows it to detect both metallic and non-metallic objects. Applications include automatic doors and robotics.
Photoelectric sensor
A photoelectric sensor uses a light beam to detect objects. It consists of a light emitter and a receiver. There are three main types: through-beam, retro-reflective, and diffuse. In a through-beam system, the emitter and receiver face each other.
An object is detected when it breaks the light beam. Retro-reflective sensors use a reflector. The emitter and receiver are in one housing. An object is detected when it interrupts the beam traveling to and from the reflector.
Diffuse sensors detect light reflected directly off the target object. These sensors are used in sorting products on a conveyor belt.
Ultrasonic sensor
An ultrasonic sensor uses high-frequency sound waves. It measures the distance to an object. A transducer emits sound pulses. These pulses travel outward and reflect off a target. The sensor then receives the echo.
It calculates the distance based on the time-of-flight. Ultrasonic sensors work well in various lighting conditions. They are not affected by smoke or dust. However, soft materials can absorb the sound waves. Applications include parking assistance systems and obstacle detection in robots.
Hall effect sensor
A Hall effect sensor detects magnetic fields. It produces a voltage proportional to the magnetic field strength. This effect was discovered by Edwin Hall. A current flows through a thin strip of conductive material.
When a magnetic field is applied perpendicular to the strip, it deflects the charge carriers. This creates a voltage difference across the material. Hall sensors are non-contact devices. They are very durable and immune to dust and dirt.
Applications include speed sensing in anti-lock braking systems and electronic compasses.
Pressure sensor
A pressure sensor converts pressure into an electrical signal. It can measure gas or liquid pressure. Many use the piezoresistive effect. The electrical resistance of a material changes when it is strained by pressure.
Some use strain gauges, which measure mechanical deformation. Others use capacitive sensing. They measure changes in capacitance caused by a diaphragm flexing. Pressure sensors are used in automotive systems to monitor tire pressure.
They are also used in medical devices like breathing apparatuses.
Strain gauge
A strain gauge measures the deformation of an object. It is attached to the object with adhesive. As the object deforms, the gauge also deforms. This deformation changes the electrical resistance of the foil inside.
The change in resistance is proportional to the strain. A Wheatstone bridge circuit is typically used to measure this small resistance change. Strain gauges are used in force and weight measurement. They are a key component in load cells.
Infrared (IR) sensor
IR sensors detect infrared radiation. All objects with a temperature above absolute zero emit IR radiation. An IR sensor measures this energy. Passive Infrared (PIR) sensors detect heat emitted by objects, like a human body.
They are commonly used in security systems to detect motion. Active IR sensors have an emitter and a detector. They measure the reflection or interruption of their own emitted IR radiation. This makes them useful for proximity sensing and object detection.
Motion sensor
A motion sensor detects movement within a defined area. Many motion sensors use passive infrared (PIR) technology. They are sensitive to the infrared radiation emitted by a moving body. The sensor has two halves, or elements, that detect IR radiation.
When a warm body moves, it creates a change in the differential signal between the two elements. This triggers the sensor. Motion sensors are used in security systems and automatic lighting.
Light-dependent resistor (LDR)
A Light-Dependent Resistor (LDR) is a light sensor. It is also known as a photoresistor. Its resistance changes depending on the light intensity. In darkness, the resistance is very high. As the light level increases, its resistance decreases.
The LDR is made from a semiconductor material. This material’s conductivity changes with the light hitting it. Applications include automatic streetlights and simple light-activated switches.
Conclusion
This article has explored ten common types of sensors that form the foundation of today’s automated and intelligent systems. Each sensor, whether it measures temperature, light, pressure, or motion—plays a specific and vital role in connecting the physical world to the digital one.
Sensors enable machines to detect changes, interpret their surroundings, and respond in real time. They allow devices to become “aware” and act intelligently, from regulating industrial processes to improving comfort and safety in our daily lives.
In modern technology, the importance of sensors cannot be overstated. They make automation possible, enhance precision, and increase efficiency across fields such as manufacturing, healthcare, automotive systems, and environmental monitoring.
As industries continue to advance, sensors are evolving to become smaller, more accurate, and more energy-efficient. The integration of wireless communication and IoT technologies has also transformed sensors into networked devices capable of sharing data instantly.
In summary, sensors are the bridge between the physical and digital domains. They make smart technology truly smart. As innovation progresses, the role of sensors will only grow, powering the next generation of intelligent systems that shape how we live, work, and interact with our environment.
FAQ: Ten Types of Sensors
What is a sensor?
A sensor is a device that detects physical changes and converts them into readable signals.
Why are there many sensor types?
Different physical quantities need different sensing methods, like heat, light, or motion.
How do I choose the right sensor?
Match it to what you’re measuring, the environment, and the required accuracy.
What’s the difference between contact and non-contact sensors?
Contact sensors touch the object; non-contact ones detect from a distance.
Can one sensor serve many uses?
Some can, but most are optimized for specific conditions or materials.
What’s a proximity sensor used for?
To detect objects without touching them, often in automation or robotics.
Why are temperature sensors important?
They help control heating, cooling, and safety in machines and systems.
What’s the main use of photoelectric sensors?
Detecting objects or changes using light beams, often on conveyor lines.
What do ultrasonic sensors measure?
Distance or level, using sound waves instead of light.
How do sensors support IoT and automation?
They collect real-world data so systems can monitor and react automatically.
